Search Help 유형

작성일: 2024-05-16

목표: Search Help 구조 이해하기





*&---------------------------------------------------------------------*
*& Report ZSEARCH_TEST03
*&---------------------------------------------------------------------*
*&
*&---------------------------------------------------------------------*
REPORT ZSEARCH_TEST03.

TABLES : spfli.

SELECTION-SCREEN BEGIN OF BLOCK part1 WITH FRAME TITLE text-001.
PARAMETERS field(10) TYPE c.
SELECTION-SCREEN END OF BLOCK part1.


SELECTION-SCREEN BEGIN OF BLOCK part2 WITH FRAME TITLE text-002.
  PARAMETERS field2(20) type c.
  SELECTION-SCREEN END OF BLOCK part2.

SELECTION-SCREEN BEGIN OF BLOCK part3 WITH FRAME TITLE text-003.
  PARAMETERS a AS CHECKBOX.
SELECTION-SCREEN END OF block part3.

SELECTION-SCREEN BEGIN OF BLOCK part4 WITH FRAME TITLE text-004.
  PARAMETERS: R1 RADIOBUTTON GROUP radl,
              r2 RADIOBUTTON GROUP radl,
              r3 RADIOBUTTON GROUP radl.

SELECTION-SCREEN END OF BLocK part4.

SELECTION-SCREEN BEGIN OF BLOCK part5 WITH FRAME TITLE text-005.
  PARAMETERS A_CARR TYPE spfli-carrid AS LISTBOX VISIBLE LENGTH 20.
SELECTION-SCREEN END OF BLOCK part5.

SELECTION-SCREEN BEGIN OF BLOCK part6 WITH FRAME TITLE text-006.
  SELECT-OPTIONS s_carrid FOR spfli-carrid.
  SELECTION-SCREEN END OF BLOCK part6.

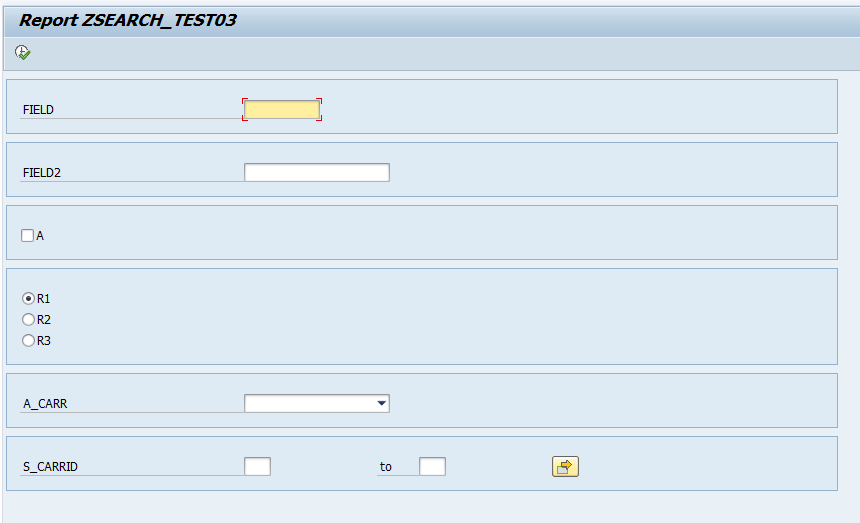

option01. parameter

option02. parameter

option03. check box

option04. radio button

option05. select option
